1994 MIYATA "Greg Herbold"

Soft Tail Prototype

Story of the bike

This bike was purchased from Jeff Archer's collection at the Museum of Mountain Bike Art & Technology (MOMBAT).

The chainstays where damaged.

I had them repaired & repainted by Ruckus Composites in Portland.

The front Onza brakes are cracked in several places, they might have been prototypes as well, maybe I'll replace them, not sure yet.



A few of the special and odd parts:

- Onza prototype pedals

- Onza prototype bar ends

- Front Grip Shift shifter, but without front derailleur. (This bike was used for different race types, from XC over DS to DH)

- Mounts for a rear rack

- Cantilever front brake, Magura hydraulic rear brake.

- XTR front brake lever overpainted and shifter cut off.





Jeff Archer, Dirt Rag article May 1, 2016:



Pick up any early 1990s mountain-bike publication and odds are good you’ll see Greg “H-Ball” Herbold gracing its pages. It may be in the racing-results section, since he won the first UCI Downhill World Championship in 1990. He also won the NORBA Downhill National Championship in 1988, 1989 and 1993, as well as the North American Downhill Championship in 1991. Other racers of that era had similar results but were absent from the magazines. The differences were Greg’s oversized personality and his work with sponsors. Generally, sponsors are after three things: product development, visibility and promotion. H-Ball was very good at all three.

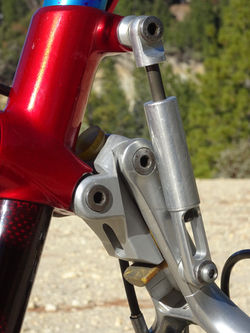

This bike shows off some of Greg’s product-development skills. The frame is one of only about a dozen carbon-fiber soft-tail bikes made by Miyata. Carbon-fiber tubes were bonded to aluminum lugs. The rear features about three-fourths of an inch of travel controlled by an AMP Research shock. The Onza bar ends are engraved “onZa proto 7-13-93,” belying their experimental status. The Kooka post and cranks feature a custom anodized splatter pattern. Brakes are a combination of Magura hydraulic rim on the rear and an Onza HO on the front, to help satisfy two sponsors. Ringlé supplied the front hub, skewers, water bottle cage and stem while SRAM Grip Shift X-Ray shifters handled the gear changes. The rear wheel is built with a tension disc that uses two stressed halves with Kevlar cords to replace the stainless steel spokes. The discs flexed quite a bit and when rolling at speed made a thunder you won’t forget.

Although H-Ball is no longer vying for world champ downhill stripes, he still keeps active in the cycling industry by working with SRAM on product development. While many fellow competitors have left the cycling industry for the “real world,” it speaks to the value of Greg’s input that he is still giving it close to two decades after leaving competition. This should be a good lesson to all the aspiring racers out there: Make sure to offer a good return on investment to your sponsors.

According to Herbold, “production never happened because head of engineering in Japan pulled the plug on the simple, effective and innovative design at the last minute, even after many samples were tested and all the marketing material was developed.”

Photo Gallery

2E57867F-EF54-4F87-B5AE-B5C2AD3A7C9E
C9670211-4CC0-4829-A705-443B1E538B95
96499511-6A6F-4575-8C1E-F96CDBF042EA_1_2
B04AC3FF-707F-49D2-944D-611BD9A7F2B6
AE84AF6F-8A0F-4EAC-9460-FDE2F2A1A8B0
A853713B-BC6E-40C2-8E71-7264A7DFAA79
F12C362D-37D1-4CEE-A816-80AB38FB1522_1_2
ABA2CBA1-A639-4458-B3F0-4D68ABB79E5F
FEF8D8CB-031B-4690-A5E6-7D844E63ABD7
01A032B7-DACB-43EA-AA53-F6BC51EDE9C7
6B0333C4-7D91-4DD9-8367-DE888F96AD3E_1_2
FBA669F0-A6F8-48E4-AB88-32A4A3C07F4F
0780B28F-44CE-4D4C-A0D6-EDCA1A7F9642
8B3169EB-B51E-470E-B0BC-60F00C00FBA2
AB44B55C-764E-4954-B3BB-F446CD2DDB1A
FB9C0C79-AD03-4966-A35E-9986793E4340
E4BDB2EB-2A77-4238-9D22-012E74B570BA

How the bike arrived


Previous photos and documentation
